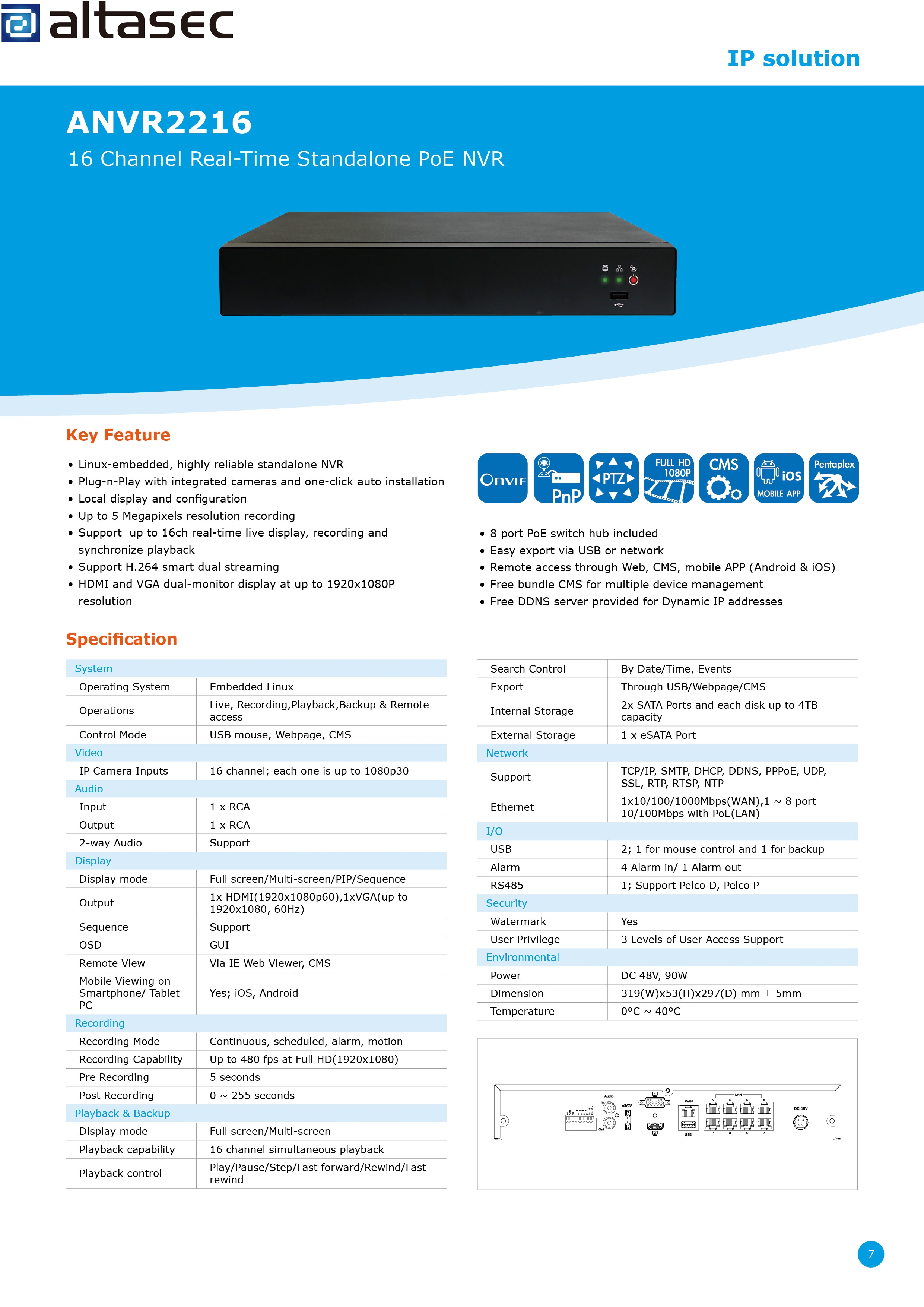

ANVR2216
- 16 Channel 5MP Standalone PoE NVR
-
- Features
- Specifications
- Ordering Information
- Download
Key Feature
- Linux-embedded, highly reliable standalone NVR
- Plug-n-Play with integrated cameras and one-click auto Installation
- Local display and configuration
- Up to 5 Megapixels resolution recording
- Support up to 16ch real-time live display, recording and synchronize playback
- Support H.264 smart dual streaming
- HD monitor and VGA dual-monitor display at up to 1920x1080P resolution
- 8 port PoE switch hub included
- Easy export via USB or network
- Remote access through Web, CMS, mobile APP (Android & iOS)
- Free bundle CMS for multiple device management
- Free DDNS server provided for Dynamic IP addresses
| Model | ANVR2216 |
|---|---|
| Operating System | Embedded Linux |
| Operations | Live, Recording, Playback, Backup & Remote access |
| Control Mode | USB mouse, Webpage, CMS |
| Video | |
| IP Camera Inputs | 16 channel; each one is up to 1080p30 or 3MP or 5MP |
| Audio | |
| Input | 1 x RCA |
| Output | 1 x RCA |
| 2-way Audio | Support |
| Display | |
| Display Mode | Full screen / Multi-screen / PIP / Sequence |
| Output | 1 x HD monitor(1920x1080p60), 1 x VGA(up to 1920x1080, 60Hz) |
| Sequence | Support |
| OSD | GUI |
| Remote View | Via IE Web Viewer, CMS |
| Mobile Viewing on Smartphone / Tablet PC |
Yes; iOS, Android |
| Recording | |
| Recording Mode | Continuous, scheduled, alarm, motion |
| Recording Capability | Up to 480 fps at Full HD(1920x1080), 3MP or 5MP |
| Pre Recording | 5 seconds |
| Post Recording | 0 ~ 255 seconds |
| Playback & Backup | |
| Display Mode | Full screen / Multi-screen |
| Playback Capability | 16 channel simultaneous playback |
| Playback Control | Play / Pause / Step / Fast forward / Rewind / Fast rewind |
| Search Control | By Date / Time, Events, and Channel |
| Export | Through USB / Webpage / CMS |
| Internal Storage | 2 x SATA Ports and each disk up to 6TB capacity |
| External Storage | 1 x eSATA Port |
| Network | |
| Support | TCP / IP, SMTP, DHCP, DDNS, PPPoE, UDP, SSL, RTP, RTSP, NTP |
| Ethernet | 1 x 10 / 100 / 1000 Mbps(WAN), 1 ~ 8 port 10 / 100 Mbps with PoE(LAN) |
| I/O | |
| USB | 2; 1 for mouse control and 1 for backup |
| Alarm | 4 Alarm in / 1 Alarm out |
| RS485 | 1; Support Pelco D, Pelco P |
| Event log | UP to 10000 events |
| OSD and DVR Control Mode | |
| Watermark | Yes |
| User Privilege | 3 Levels of User Access Support |
| GUI Multi-language | English, Traditional Chinese, Simplified Chinese, Japanese, German, French, Dutch, Italian, Spanish, Portuguese, Swedish,Norwegian,Finnish, Danish, Russian,Turkish,Polish, Czech, Hungarian,Greek,Korean, Hebrew,Thai |
| OSD Multi-language | Support |
| System FW/SW Upgrade | USB flash drive, webpage, CMS Pro |
| Environmental | |
| Power | DC 48V, 90W |
| Dimension | 319(W) x 53(H) x 297(D) mm ± 5 mm |
| Temperature | 0°C ~ 40°C |
| Operating Humidity | 10% ~ 80% |
Note: Specifications are subject to change without any prior notice.
| Item No.(Sales Part No.) | Description |
|---|---|
| ANVR2216 | 16CH 8PoE Real-Time Embedded NVR |
