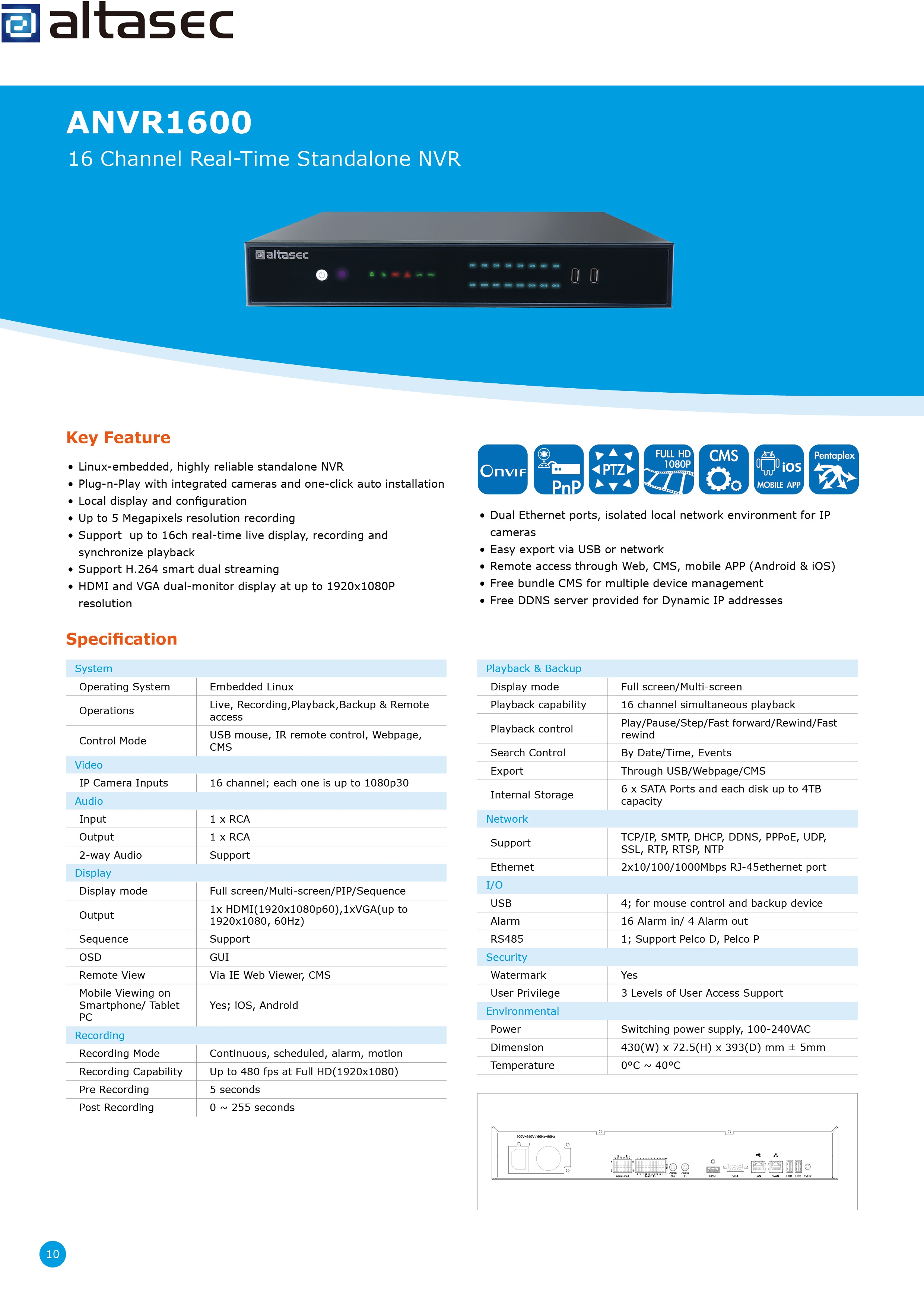

ANVR1600
- 16 Channel 5MP Standalone NVR
-
- Features
- Specifications
- Ordering Information
- Download
Key Feature
- Linux-embedded, highly reliable standalone NVR
- Plug-n-Play with integrated cameras and one-click auto Installation
- Local display and configuration
- Up to 5 Megapixels resolution recording
- Support up to 16ch real-time live display, recording and synchronize playback
- Support H.264 smart dual streaming
- HD monitor and VGA dual-monitor display at up to 1920x1080P resolution
- Dual Ethernet ports, isolated local network environment for IP cameras
- Easy export via USB or network
- Remote access through Web, CMS, mobile APP (Android & iOS)
- Free bundle CMS for multiple device management
- Free DDNS server provided for Dynamic IP addresses
| Model | ANVR1600 | |
|---|---|---|
| Operating System | Embedded Linux | |
| Operations | Live, Recording, Playback, Backup & Remote access | |
| Control Mode | USB mouse, IR remote control, Webpage, CMS | |
| Video | ||
| IP Camera Inputs | 16 channel; each one is up to 1080p30 or 3MP or 5MP | |
| Audio | ||
| Input | 1 x RCA | |
| Output | 1 x RCA | |
| 2-way Audio | Support | |
| Display | ||
| Display Mode | Full screen / Multi-screen / PIP / Sequence | |
| Output | 1 x HD monitor(1920x1080p60), 1 x VGA(up to 1920x1080, 60Hz) | |
| Sequence | Support | |
| OSD | GUI | |
| Remote View | Via IE Web Viewer, CMS | |
| Mobile Viewing on Smartphone / Tablet PC | Yes; iOS, Android | |
| Recording | ||
| Recording Mode | Continuous, scheduled, alarm, motion | |
| Recording Capability | Up to 480 fps at Full HD(1920x1080), 3MP or 5MP | |
| Pre Recording | 5 seconds | |
| Post Recording | 0 ~ 255 seconds | |
| Playback & Backup | ||
| Display Mode | Full screen / Multi-screen | |
| Playback Capability | 16 channel simultaneous playback | |
| Playback Control | Play / Pause / Step / Fast forward / Rewind / Fast rewind | |
| Search Control | By Date / Time, Events, and Channel | |
| Export | Through USB / Webpage / CMS | |
| Internal Storage | 6 x SATA Ports and each disk up to 6TB capacity | |
| Network | ||
| Support | TCP / IP, SMTP, DHCP, DDNS, PPPoE, UDP, SSL, RTP, RTSP, NTP | |
| Ethernet | 2 x 10 / 100 / 1000 Mbps RJ-45 ethernet port | |
| I/O | ||
| USB | 4; for mouse control and backup device | |
| Alarm | 16 Alarm in / 4 Alarm out | |
| RS485 | 1; Support Pelco D, Pelco P | |
| Event Log | Up to the 10000 events | |
| OSD and DVR Control Mode | ||
| Watermark | Yes | |
| User Privilege | 3 Levels of User Access Support | |
| GUI Multi-language | English, Traditional Chinese, Simplified Chinese, Japanese, German, French, Dutch, Italian, Spanish, Portuguese, Swedish,Norwegian,Finnish, Danish, Russian,Turkish,Polish, Czech, Hungarian,Greek,Korean, Hebrew,Thai | |
| OSD Multi-language | Support | |
| System FW/SW Upgrade | USB flash drive, webpage, CMS Pro | |
| Environmental | ||
| Power | Switching power supply, 100-240VAC | |
| Dimension | 430(W) x 72.5(H) x 393(D) mm ± 5 mm | |
| Temperature | 0°C ~ 40°C | |
| Operating Humidity | 10% ~ 80% | |
Note: Specifications are subject to change without any prior notice.
| Item No.(Sales Part No.) | Description |
|---|---|
| ANVR1600 | 16CH Real-Time Embedded NVR |
